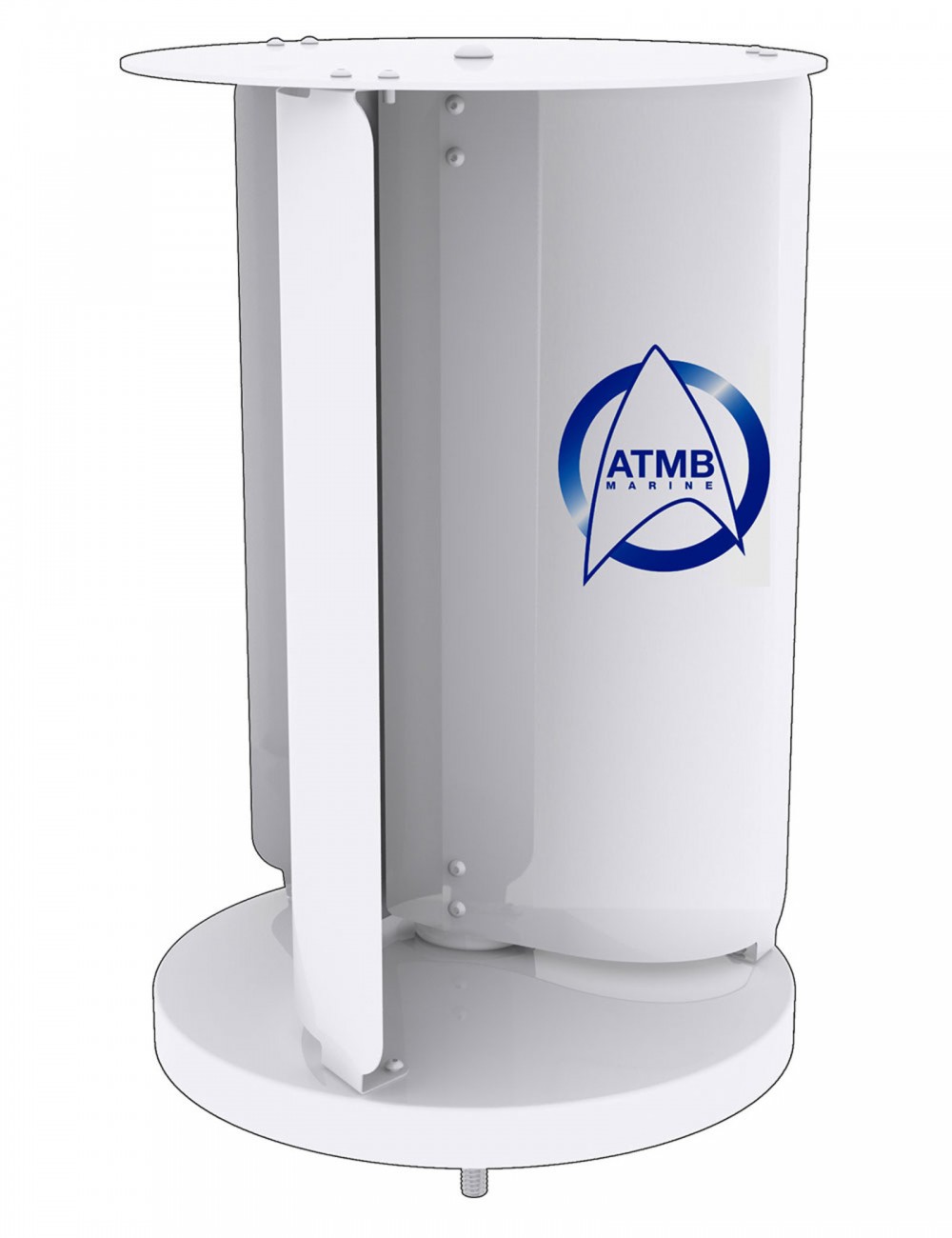

Vertical wind turbine with 15W and 25W regulator
High performance vertical axis wind turbine to keep batteries charged. This wind turbine is suitable for many applications, boats, motorhomes, telemetry stations, isolated sites…
The alternator with low inertia is driven by a carefully balanced rotor, this allows these wind turbines to continuously produce whatever the wind conditions. The 500 model is the smallest wind turbine produced with 200 mm in diameter and just over 300 mm high, it ensures a maintenance load for small installations requiring low energy needs with powers up to 150aH. The 1000 model is suitable for installations up to 450 Ah. Designed to operate permanently in total autonomy, the regulation is internal and automatic for the 1000 model. The two versions are fully marinized. Both models are designed as maintenance chargers, they can be permanently connected to the batteries without regulator. The 1000 model is indicated for boats over 10 m to keep the batteries in good condition. To avoid rapid deterioration and maintain good longevity, it is established that the batteries must be constantly charged even with a low current. Space-saving, simple installation on the balcony, the portico, the bridge. Silent operation without any risk less than 5dB at 5 meters. Maintenance-free sealed bearings. Aluminum construction and epoxy paint. Protected and waterproof electrical circuit. Alternator: Three-phase permanent magnet coated with epoxy. Operating temperature: - 50 / + 50 ° C. Supplied with long cable
Product Details
Data sheet
- poids
- 8 Kg
- amorçage
- 3-3,5ms-1
- ms-1
- 20ms-1
- trad
- 310 mm
- diamètre extérieur
- 200mm
- tension
- 12V
- puissance
- 15 W
Specific References
- ean13
- 85030099
Download
Download the notice
Product notice
Download (844.58k)Related products
